Wodify Pulse brings Myzone heart-rate tracking into your classes so coaches and clients can view live effort data on your Kiosk display, boosting engagement and accountability during training.

Pre-requisite Pro-Tip

Before using Wodify Pulse in class, confirm:

• Wodify Pulse is enabled for your business.

• Your Myzone hardware is installed and powered on (including the Intel Stick), and your display is set to the correct HDMI input.

• You have at least one Myzone belt/device registered (client-owned and/or loaner).

• You are familiar with utilizing the Pulse panel in Kiosk+

Step-By-Step How To:

Open Kiosk+

1. Log into Wodify Core.

2. In the bottom-left, click the 9-dot menu.

3. Select Kiosk+.

Select your display

1. Choose your Kiosk+ Display.

2. Click Apply.

Switch the display to Pulse

1. From the dropdown menu, select Pulse.

2. Click Apply.

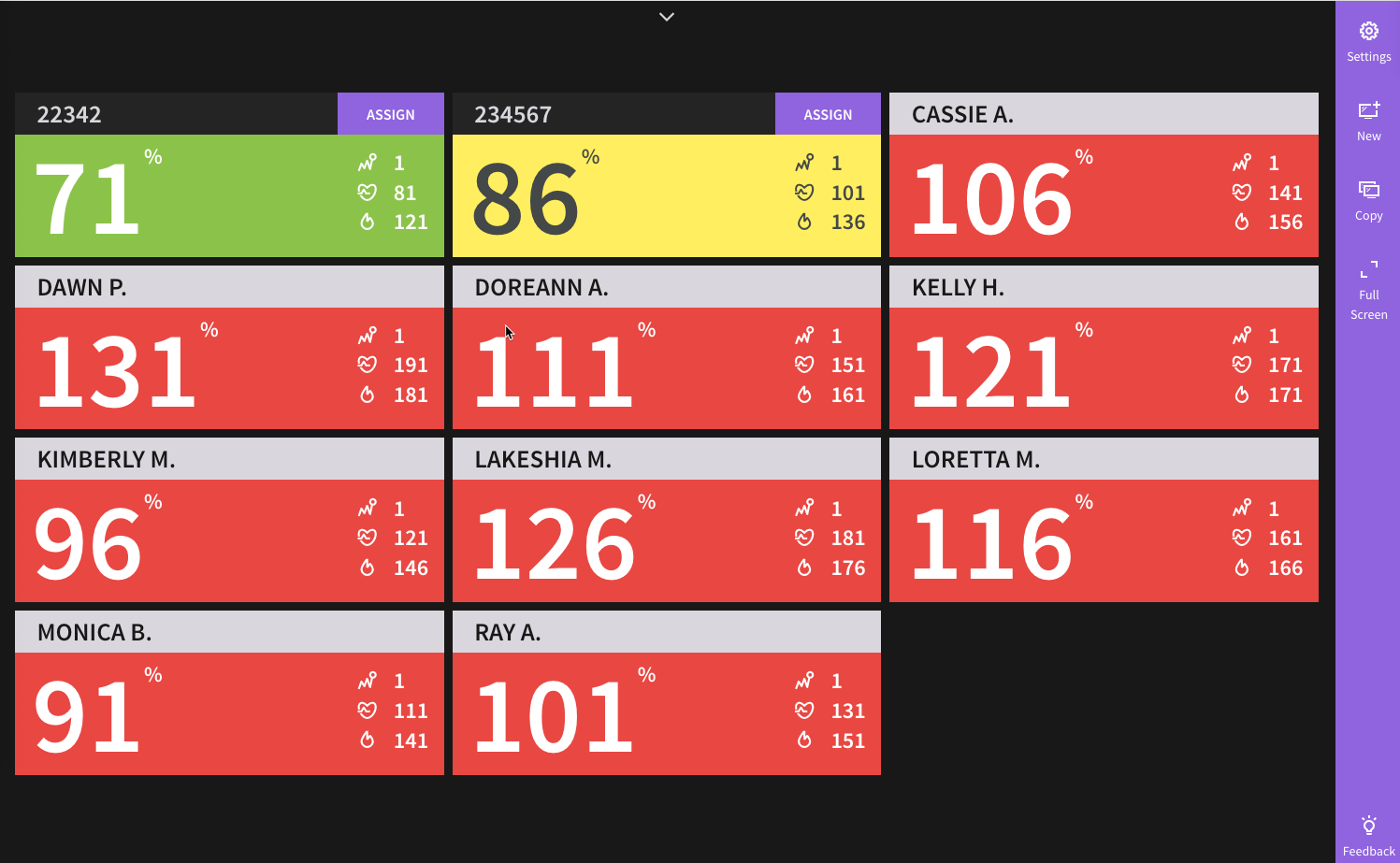

Confirm Pulse tiles populate

• Pulse belt tiles will auto-populate on the screen once Pulse is applied.

Assign a loaner belt (if applicable)

1. Locate the loaner belt tile showing Assign.

2. Click Assign.

3. Select a client who is signed in, then click Assign.

4. Enter the client’s biometric data when prompted.

5. Click Save.

Unassign a loaner belt

1. Find the belt tile currently assigned to a client.

2. Click Unassign.



Scribe

FAQs

Installation & display troubleshooting

What happens if my Intel Stick does not fit into the HDMI port?
Use the HDMI extender.

I cannot get the Myzone screen to display—what should I do next?
Confirm you are using the HDMI input that matches where the Intel Stick is physically connected.

Why won’t the wireless keyboard work?
Ensure the keyboard is fully charged.

Belt registration & Myzone account setup

When registering a belt through the Admin screen, where do I add a device?
Go to Pulse > Add Device.

Why does the system ask for weight and height?
Biometric data helps ensure your belt is displaying accurate data points.

How does a client set up a Myzone account?
When a client registers a brand-new Myzone belt through Wodify Pulse, they’ll be prompted to create a Myzone password. They can then download the Myzone app and log in using those credentials.

Using Pulse tiles & belt care

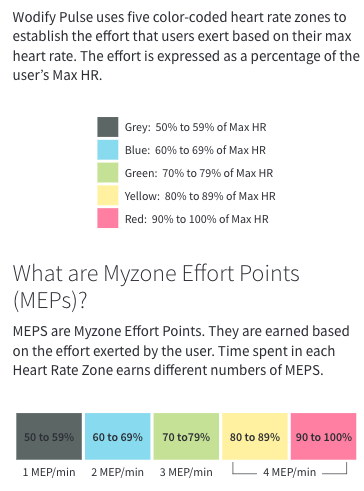

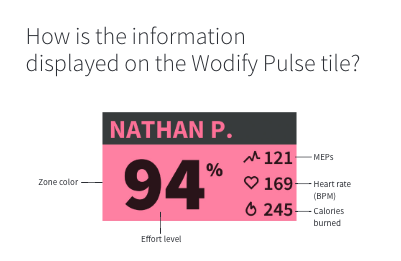

What do the tiles, icons, and zones mean?

How do I clean my belt?
Wash the elastic portion with mild soap and water. Do not submerge the module or sensors.

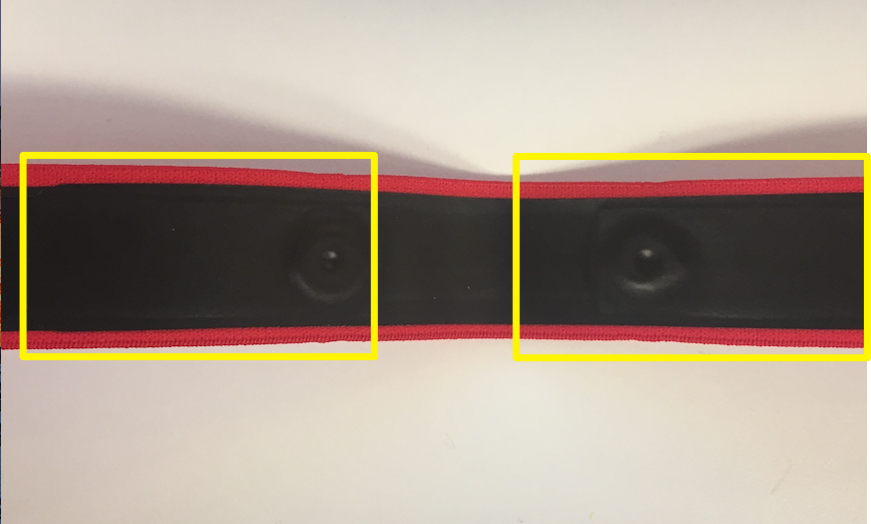

Why won’t my belt work / why isn’t it showing data?
Sensors read best when they’re warm. Wear the belt during warm-up, and add moisture to the sensors on the reverse side of your MZ-3 or MZ-1 belt
